Compact Canopy
Design a canopy that looks like glass—without the weight, fragility, or maintenance headaches. The Danpalite Canopy pairs true-to-life transparency with high impact resistance and 100% watertight standing-seam connections, giving you a durable, code-ready daylighting solution for entries, walkways, curbside pick-ups, and outdoor learning spaces.
What it is

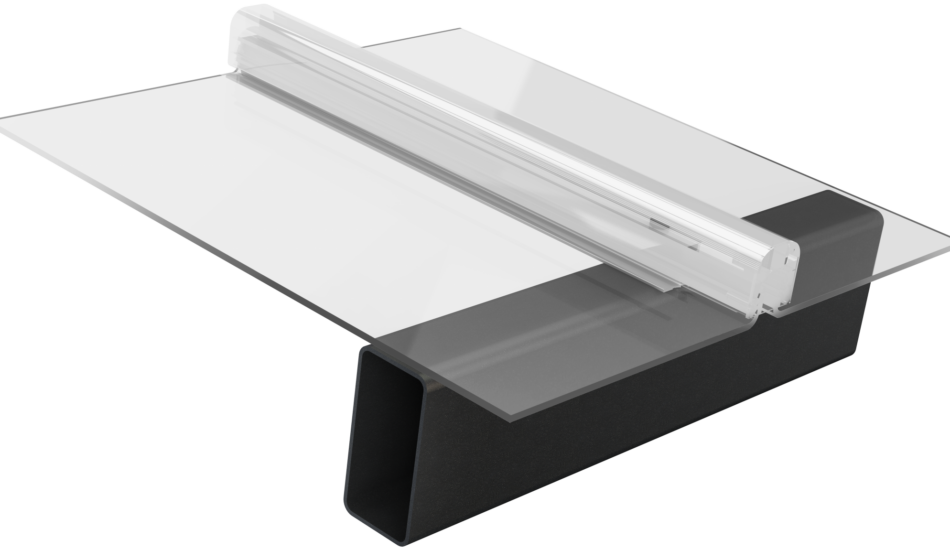

Danpalite utilizes our Compact 4 mm solid polycarbonate glazing panel that delivers the visual clarity of glass with a fraction of the weight. Panels interlock via double-notched standing seams to ensure water-tightness and mechanical stability. Standard modules are 600/605 mm with lengths up to ~12 m (≈39 ft), enabling long, clean rooflines with minimal joints.
Why project teams choose a Danpalite Canopy?
☑ Glass-like look, real-world toughness. Achieve a refined, transparent canopy that resists impacts and everyday abuse—perfect for K-12, higher-ed, civic, and transit environments.
☑ Watertight by design. Standing-seam joints create a continuous, leak-free roof with no reliance on field sealant at the glazing joints—reducing callbacks and maintenance.
☑ Lightweight = leaner structure. Slash dead load compared to glass, enabling slimmer steel, smaller footings, and a more budget-friendly canopy without sacrificing performance.
☑ Form freedom. Flat, curved, or cantilevered—on-site cold bending supports dynamic geometries and long, clean rooflines.
☑ Daylighting with control. High visible light transmission for welcoming entries and safer pedestrian zones, with options to tune glare and solar gain.

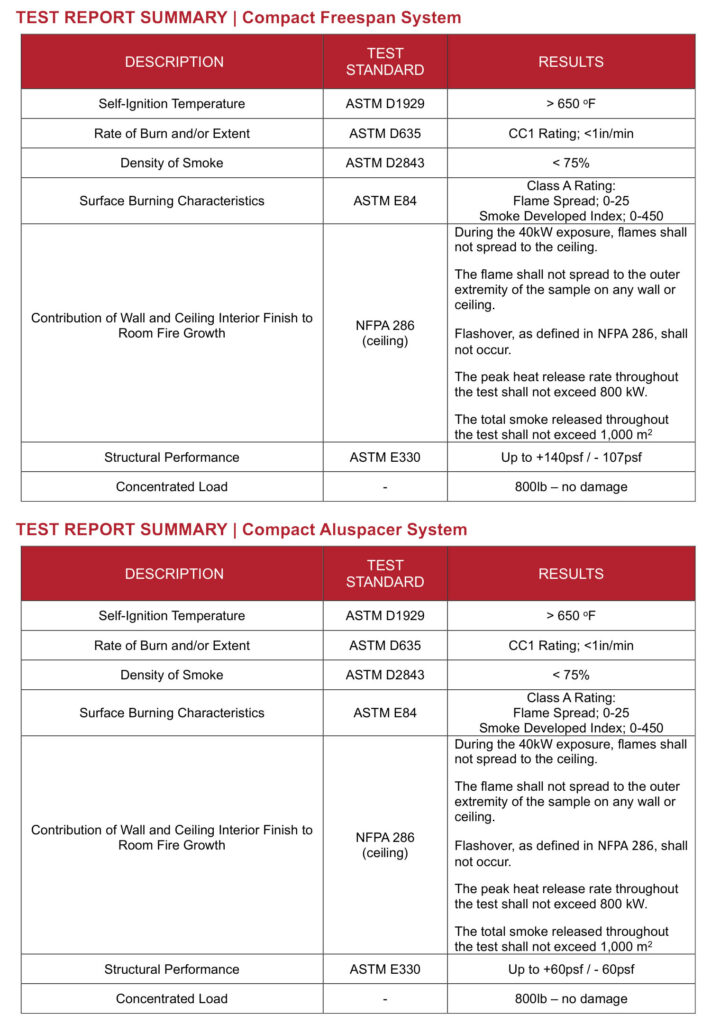

☑ Code-conscious, submittal-ready. Access guide specs, details, and testing to streamline approvals and keep your schedule on track.
☑ Sustainable intent. Durable, UV-protected polycarbonate and reduced structural materials support lower embodied impacts and long-term clarity.
Performance at a glance
☑ 4 mm solid polycarbonate panel — delivers the clarity of monolithic glazing with superior impact resistance.
☑ Dry-glazed standing seam — watertight, mechanically locked joints; no exposed fasteners through the glazing.
☑ Cold-curving capability — create gentle curves and sculpted edges without specialized lamination.
☑ Lightweight system — reduces structural steel and simplifies retrofits over existing substrates.
☑ UV-protected exterior — helps preserve transparency and color over the lifecycle.
☑ Compatible framing options — pairs with Danpal structural bars or traditional purlins/rafters.
☑ Fast installation — modular components and dry joints accelerate schedules and minimize site disruption.
Ready to Specify
Technical Data
